3528 Series
Product Introduction

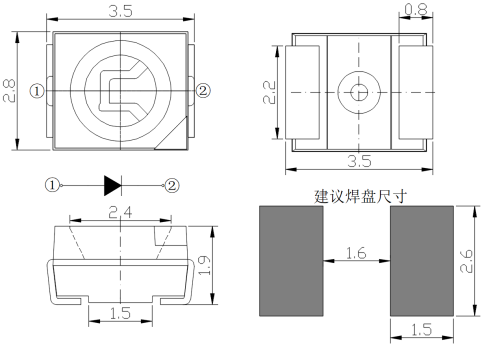

External dimensions(mm) | In kind |
|
|
| Product | Size | Color | λd(nm)/ | Vf(V) | IV(mcd) | Viewing | IF | ||
| (L*W*Hmm) | CCT(K)/ | Angle | (mA) | ||||||
| CIE(X,Y) | 2θ1/2 | ||||||||
| (deg) | |||||||||
| Min | Max | Min | Max | ||||||
| 038.R000 | 3.5*2.8*1.8 | Red | 618-635 | 1.8 | 2.4 | 600 | 900 | 120° | 20 |
| 038.G000 | 3.5*2.8*1.8 | Greed | 512-525 | 3 | 3.4 | 1000 | 1800 | 20 | |
| 038.B000 | 3.5*2.8*1.8 | Blue | 460-470 | 3 | 3.4 | 300 | 600 | 20 | |
| 038.O000 | 3.5*2.8*1.8 | Orange | 600-610 | 1.8 | 2.4 | 600 | 800 | 20 | |
| 038.Y000 | 3.5*2.8*1.8 | Yellow | 580-595 | 1.8 | 2.4 | 500 | 800 | 20 | |
| 038.YG000 | 3.5*2.8*1.8 | Yellow Greed | 568-574 | 1.7 | 2.2 | 80 | 100 | 20 | |
| 038.W000 | 3.5*2.8*1.8 | White | X:0.27 Y:0.22 | 3 | 3.4 | 2200 | 2800 | 20 | |
| 038B.WR | 3.5*2.8*1.8 | White | X:0.27 Y:0.22 | 2.5 | 3.5 | 2200 | 2800 | 20 | |
| Red | 620-625 | 1.8 | 2.4 | 600 | 900 | ||||
| 038B.BG | 3.5*2.8*1.8 | Blue | 460-470 | 3 | 3.4 | 300 | 600 | 20 | |
| Greed | 515-525 | 2.5 | 3.5 | 1000 | 1200 | ||||
| 038B.OW | 3.5*2.8*1.8 | Orange | 601-606 | 1.8 | 2.4 | 600 | 800 | 20 | |
| Ice Blue | X:0.15 Y:0.18 | 2.5 | 3.5 | 1100 | 2300 | ||||
| 038B.YYG | 3.5*2.8*1.8 | Yellow | 580-595 | 1.8 | 2.4 | 500 | 800 | 20 | |
| Yellow Greed | 568-574 | 1.7 | 2.2 | 80 | 100 | ||||
| 038B.RGB | 3.5*2.8*1.8 | Red | 620-630 | 1.8 | 2.4 | 600 | 900 | 20 | |
| Greed | 512-520 | 2.5 | 3.5 | 1000 | 1200 | ||||
| Blue | 460-470 | 3 | 3.4 | 300 | 600 | ||||
| 038B.RGB | 3.5*2.8*1.8 | Red | 620-630 | 1.8 | 2.4 | 600 | 900 | 20 | |
| Greed | 512-520 | 2.5 | 3.5 | 1000 | 1200 | ||||
| Blue | 460-470 | 3 | 3.4 | 300 | 600 | ||||
