2604 Series
Product Introduction

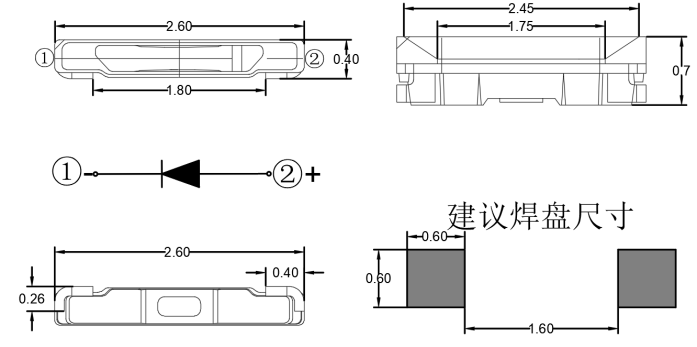

External dimensions(mm) | In kind |
|
|
| Product | Size | Color | λd(nm)/ | Vf(V) | IV(mcd) | Viewing | IF | ||
| (L*W*Hmm) | CCT(K)/ | Angle | (mA) | ||||||
| CIE(X,Y) | 2θ1/2 | ||||||||
| (deg) | |||||||||
| Min | Max | Min | Max | ||||||
| 033.R000 | 2.6*0.4*0.7 | Red | 618-640 | 1.8 | 2.4 | 400 | 1000 | 120° | 20 |
| 033.G000 | 2.6*0.4*0.7 | Greed | 515-525 | 2.5 | 3.5 | 1000 | 3500 | 20 | |
| 033.B000 | 2.6*0.4*0.7 | Blue | 460-470 | 2.5 | 3.5 | 500 | 800 | 20 | |
| 033.O000 | 2.6*0.4*0.7 | Orange | 601-606 | 1.8 | 2.4 | 400 | 600 | 20 | |
| 033.Y000 | 2.6*0.4*0.7 | Yellow | 580-595 | 1.8 | 2.4 | 400 | 600 | 20 | |
| 033.YG000 | 2.6*0.4*0.7 | Yellow Greed | 568-574 | 1.7 | 2.2 | 100 | 120 | 20 | |
| 033.W000 | 2.0*1.0*0.8 | White | X:0.27 Y:0.24 | 2.8 | 3.4 | 2000 | 4000 | 20 | |
