0805-0.7T Series
Product Introduction

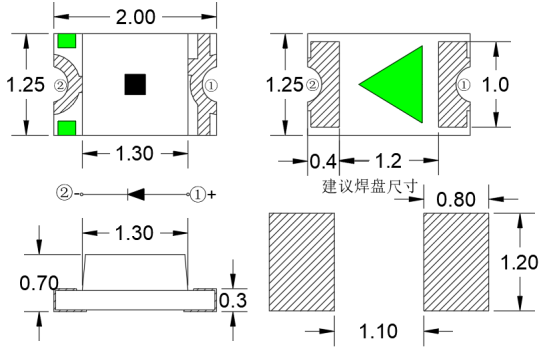

External dimensions(mm) | In kind |
|
|
| Product | Size | Color | λd(nm)/ | Vf(V) | IV(mcd) | Viewing | IF | ||
| (L*W*Hmm) | CCT(K)/ | Angle | (mA) | ||||||
| CIE(X,Y) | 2θ1/2 | ||||||||
| Min | Max | Min | Max | (deg) | |||||
| 004.R000 | 2.0*1.25*0.7 | Red | 620-624 | 1.7 | 2.2 | 7.2 | 280 | 120° | 5 |
| 004.G000 | 2.0*1.25*0.7 | Greed | 515-525 | 2.7 | 3.2 | 28.5 | 450 | 5 | |
| 004.B000 | 2.0*1.25*0.7 | Blue | 460-470 | 2.7 | 3.2 | 180 | 450 | 5 | |
| 004.O000 | 2.0*1.25*0.7 | Orange | 601-606 | 1.7 | 2.2 | 40 | 355 | 5 | |
| 004.Y000 | 2.0*1.25*0.7 | Yellow | 580-595 | 1.7 | 2.2 | 40 | 355 | 5 | |
| 004.YG000 | 2.0*1.25*0.7 | Yellow Greed | 568-574 | 1.7 | 2.2 | 11.5 | 90 | 5 | |
| 004.W000 | 2.0*1.25*0.7 | White | 4000-4500 | 2.7 | 3.3 | 160 | 300 | 5 | |
| 004.W000 | 2.0*1.25*0.7 | Warm White | 2700-3500 | 2.7 | 3.3 | 160 | 300 | 5 | |
| 004.W000 | 2.0*1.25*0.7 | Cool White | 5000-6500 | 2.8 | 3.3 | 270 | 410 | 5 | |
| 004.W000 | 2.0*1.25*0.7 | White | 6500-12000 | 2.8 | 3.3 | 270 | 410 | 5 | |
| 004.W000 | 2.0*1.25*0.7 | White | 12000-25000 | 2.8 | 3.3 | 270 | 410 | 5 | |
| 004.W000 | 2.0*1.25*0.7 | White | 100000 | 2.8 | 3.3 | 270 | 410 | 5 | |
