1204-1.5T Series
Product Introduction

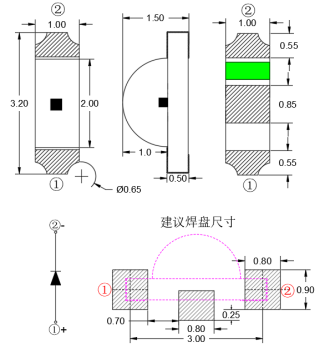

External dimensions(mm) | In kind |
|
|
| Product | Size | Color | λd(nm)/ | Vf(V) | IV(mcd) | Viewing | IF | ||
| (L*W*Hmm) | CCT(K)/ | Angle | (mA) | ||||||
| CIE(X,Y) | 2θ1/2 | ||||||||
| Min | Max | Min | Max | (deg) | |||||
| 029.R000 | 3.2*1.0*1.5 | Red | 615-630 | 1.7 | 2.2 | 7.2 | 280 | 120° | 5 |
| 029.G000 | 3.2*1.0*1.5 | Greed | 512-525 | 2.7 | 3.5 | 28.5 | 450 | 5 | |
| 029.B000 | 3.2*1.0*1.5 | Blue | 460-470 | 2.7 | 3.5 | 180 | 450 | 5 | |
| 029.O000 | 3.2*1.0*1.5 | Orange | 600-610 | 1.7 | 2.2 | 40 | 355 | 5 | |
| 029.Y000 | 3.2*1.0*1.5 | Yellow | 580-595 | 1.7 | 2.2 | 40 | 355 | 5 | |
| 029.YG000 | 3.2*1.0*1.5 | Yellow Greed | 565-575 | 1.7 | 2.3 | 11.5 | 90 | 5 | |
| 029.W000 | 3.2*1.0*1.5 | White | 4000-4500 | 2.6 | 3.2 | 160 | 300 | 5 | |
| 029.W000 | 3.2*1.0*1.5 | Warm White | 2700-3500 | 2.6 | 3.2 | 160 | 300 | 5 | |
| 029.W000 | 3.2*1.0*1.5 | Cool White | 5000-6500 | 2.6 | 3.2 | 270 | 410 | 5 | |
| 029.W000 | 3.2*1.0*1.5 | White | 6500-12000 | 2.6 | 3.2 | 270 | 410 | 5 | |
| 029.W000 | 3.2*1.0*1.5 | White | 12000-25000 | 2.6 | 3.2 | 270 | 410 | 5 | |
| 029.W000 | 3.2*1.0*1.5 | White | 100000 | 2.6 | 3.2 | 270 | 410 | 5 | |
| 029E.GB | 3.2*1.0*1.5 | Greed | 520-525 | 2.8 | 3.2 | 120 | 180 | 20 | |
| Blue | 466-470 | 2.8 | 3.2 | 700 | 800 | ||||
| 029E.RW | 3.2*1.0*1.5 | Red | 620-630 | 1.7 | 2.1 | 40 | 280 | 20 | |
| White | 2700-9000 | 2.6 | 3.2 | 140 | 210 | ||||
| 029K.YYG | 3.2*1.0*1.5 | Yellow | 580-595 | 1.7 | 2.2 | 40 | 355 | 20 | |
| Yellow Greed | 565-575 | 1.7 | 2.3 | 11.5 | 90 | ||||
| 029.RGB | 3.2*1.0*1.5 | Red | 620-630 | 1.7 | 2.2 | 40 | 280 | 20 | |
| Greed | 512-525 | 2.7 | 3.5 | 28.5 | 450 | ||||
| Blue | 460-470 | 2.7 | 3.5 | 180 | 450 | ||||
| 029M.RGB | 3.2*1.0*1.5 | Red | 620-630 | 1.7 | 2.2 | 40 | 280 | 20 | |
| Greed | 512-525 | 2.7 | 3.5 | 28.5 | 450 | ||||
| Blue | 460-470 | 2.7 | 3.5 | 180 | 450 | ||||
